| SPECIFICATION |
DETAILS |
| Product |

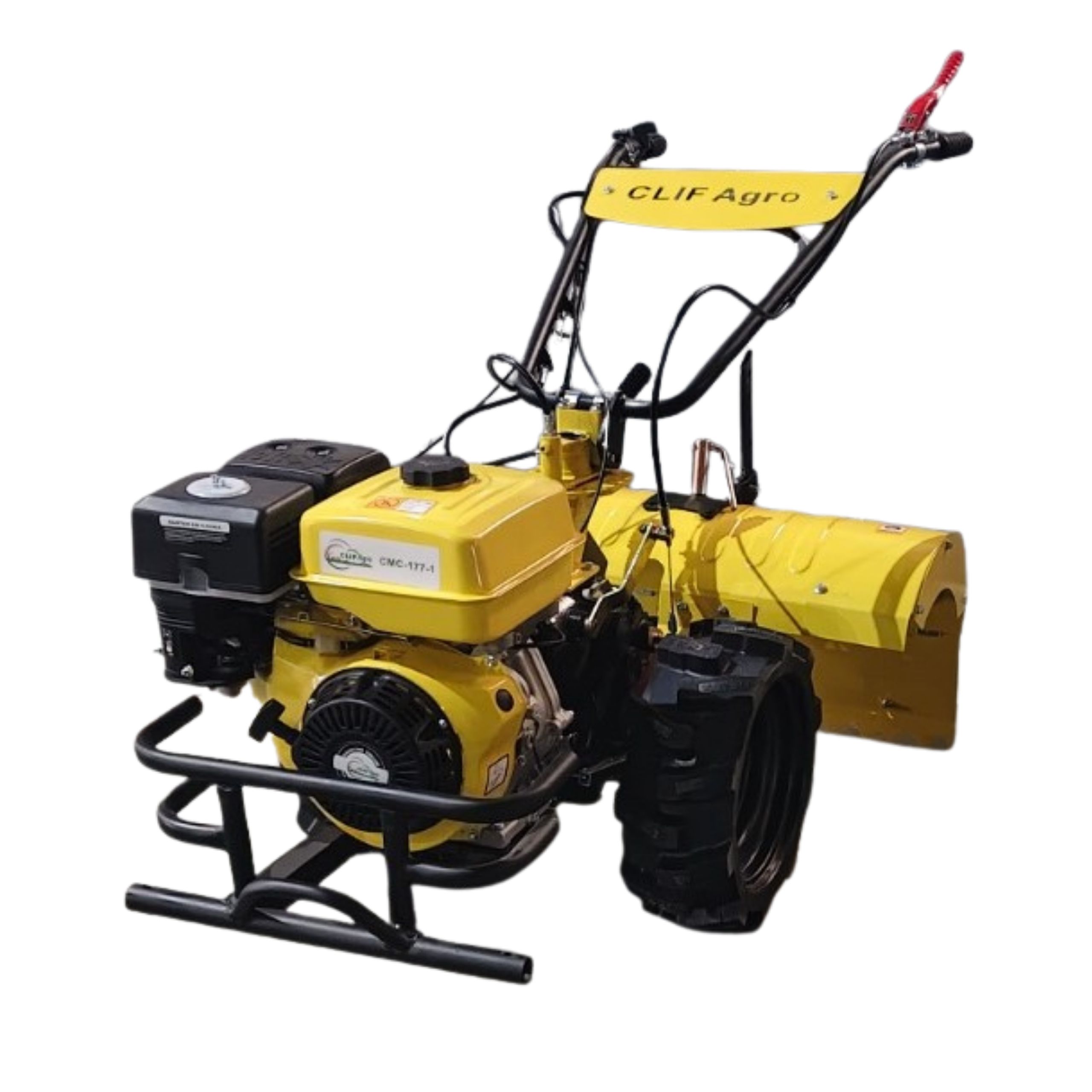

Back Rotary Cultivator Weeder |
| Engine Model |
177F |
| Engine Type |
4-Stroke, Single Cylinder, OHV |
| Cooling System |
Forced Air Cooled |
| Fuel Type |
Petrol |
| Engine Power |
9 HP |
| Engine Displacement |
270 CC |
| Rated / Max. Speed |
3600 RPM |
| Max. Torque |
Approx. 15.5–16 Nm |
| Starting System |
Recoil / Manual Start* |
| Transmission |
Heavy-Duty Gear Drive |
| Gear |
2 Forward + 1 Reverse |
| Rotary Shaft |
32 / 40 Blades* |
| Side Disc |
2 Nos.* |
| Tyre Size |
400 × 8 Pneumatic* |
| Fuel Tank Capacity |
Approx. 6 L |
| Engine Oil Capacity |
Approx. 1.1 L |
| Cylinder Bore × Stroke |
77 × 58 mm |
| Compression Ratio |
8.2 : 1 |
| Lubrication |
Splash Lubrication |
| Handlebar |
Adjustable Heavy-Duty Handle |
| Drive Type |
Gear Drive |
| Application |
Cultivation, Weeding & Soil Preparation |
