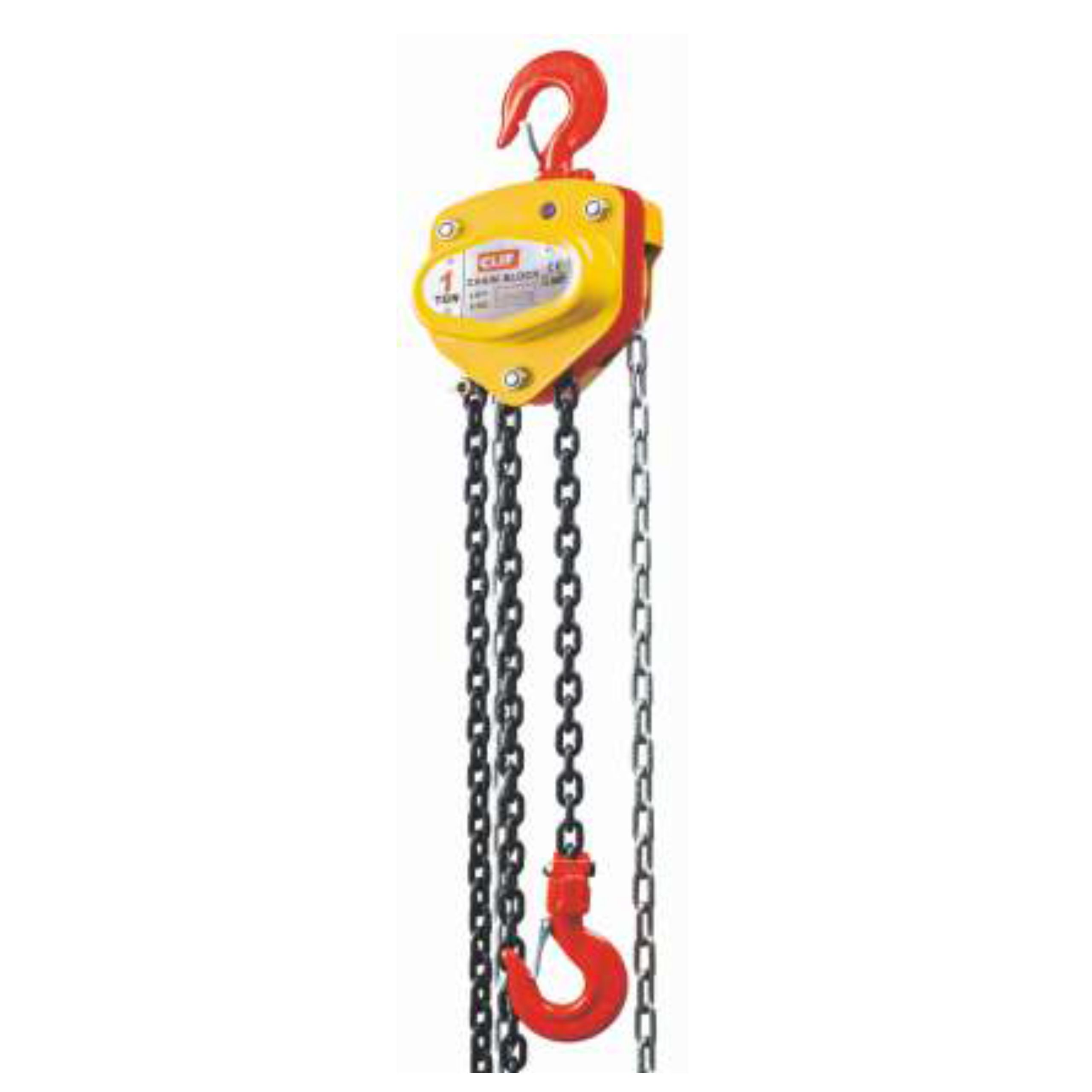

CLIF 619 CHAIN BLOCK (YELLOW)
| Model | Capacity | Standard lift | Running Test load | Effort Required to lift rated load | Strands of load chain | Diameter of load chain | DIMENSION (MM) | Net weight | Packing Measurement | Extra weight per metre 0f extra lift | ||||
| Tons | (M) | KN | (N) | MM | A | B | C | D | K | (KG) | CM | KG | ||
| 619-1A | 1 | 3 | 15 | 300 | 1 | 6 | 140 | 158 | 317 | 35.5 | 28 | 12 | 25x18x9.5 | 1.8 |
| 619-2A | 2 | 3 | 30 | 360 | 1 | 8 | 161 | 187 | 414 | 42.5 | 33.5 | 20 | 28x21x 24 | 2.4 |
| 619-3A | 3 | 3 | 45 | 340 | 2 | 8 | 161 | 199 | 464 | 50 | 40 | 27 | 32x21x26 | 3.8 |
| 619-5A | 5 | 3 | 62.5 | 414 | 2 | 10 | 186 | 253 | 636 | 64 | 50 | 45.5 | 40x21x31 | 5.4 |
| 619-10A | 10 | 3 | 125 | 414 | 4 | 10 | 207 | 398 | 798 | 85 | 64 | 83 | 50x41x21 | 5.4 |
| 619-20A | 20 | 3 | 250 | 414×2 | 8 | 10 | 215 | 650 | 890 | 110 | 85 | 193 | 64x38x64 | 19.6 |
